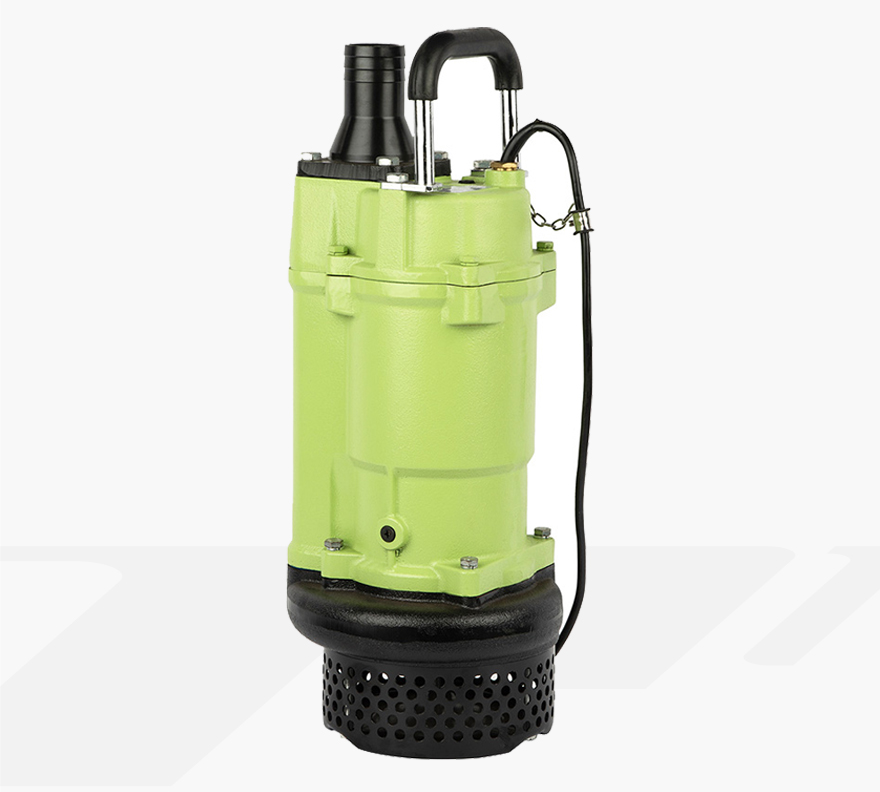

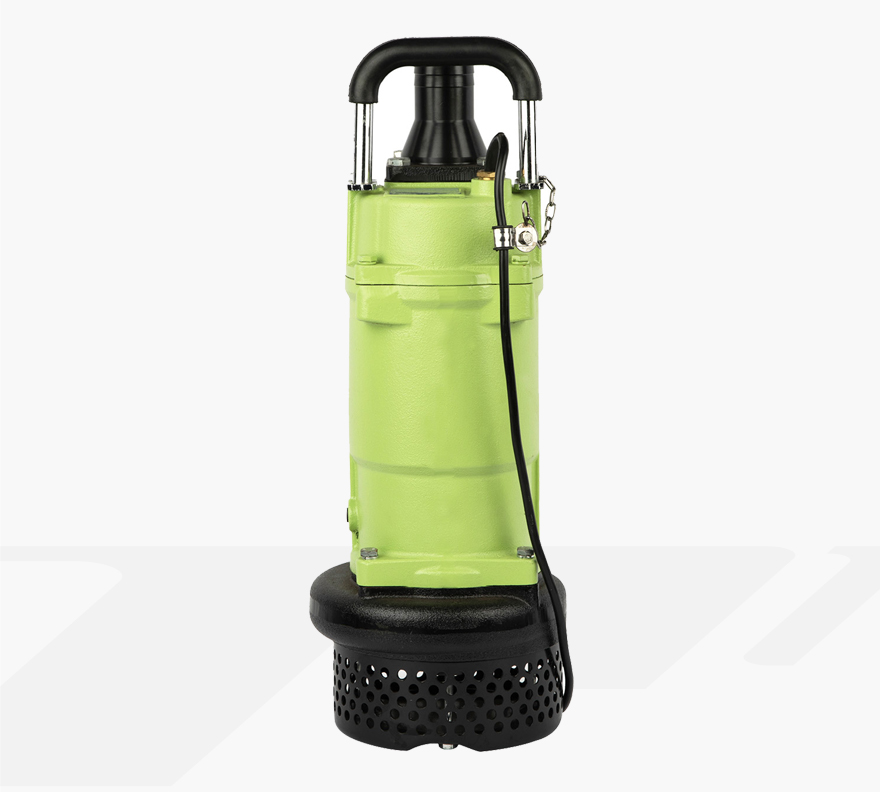

Submersible Dewatering Pump KBZ Series
Private House
Garden
Business Building
Product name: KBZ
Specification
Capacity: up to 160 ㎡/h
Head: up to 57 meters
Power:1.5KW(2HP) to 15 KW (20HP)
Power supply: three phase 380 V t 10% 50Hz，380 V t 10% 60Hz
Insulation class: F
Protection class: IP68
Cable length: 8m
Water temperature: up to 40℃
Max.water depth: 25m
Special Features on Request
Other voltages
The length of cable is optional
Application
Civil engineering
Mines,quarries,coal ore & slurries
Sewage treatment plants
General pumping purposes
Material Description
The body of motor and pump is made of rigid cast iron for long-lasting durability
Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure
Semi–open impeller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability
Effective motor cooling due to discharge channel cast as part of the motor housing. Space economy by a top outlet
Discharge 50mm (2″) to 1 50mm (6″), motor 1. .5kW (2HP) to15kW(20HP) Hermetically sealed motor equipped with built–in thermal protection
