Surface Pump
Peripheral Pump QB Series
QB60
Product Model
Application Scenario:
Private House
Garden
Business Building
Professional Certification:

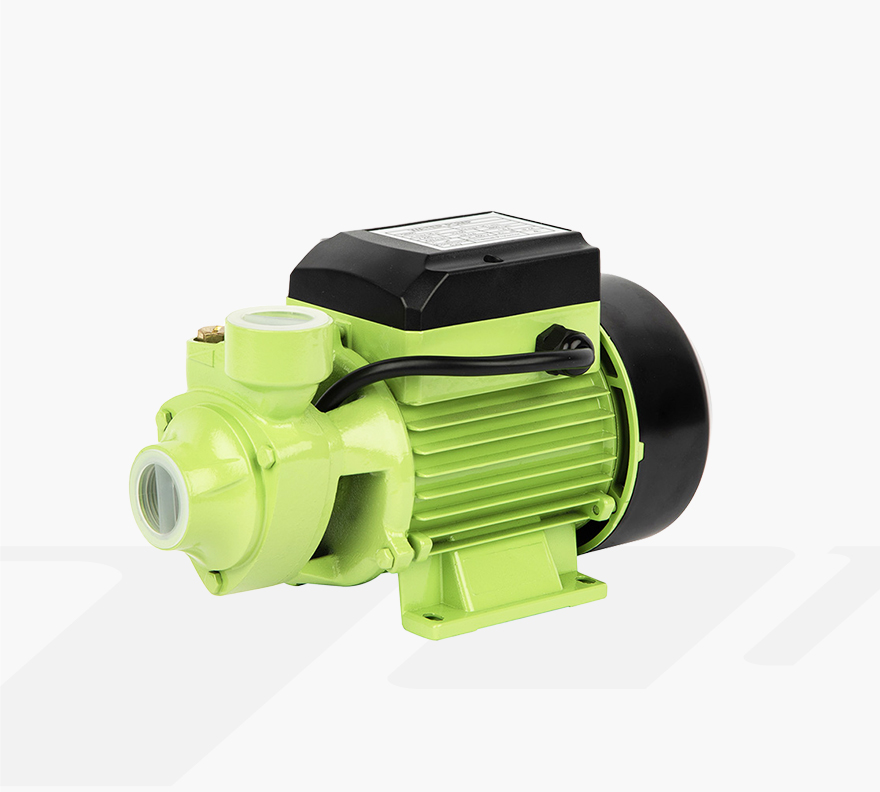

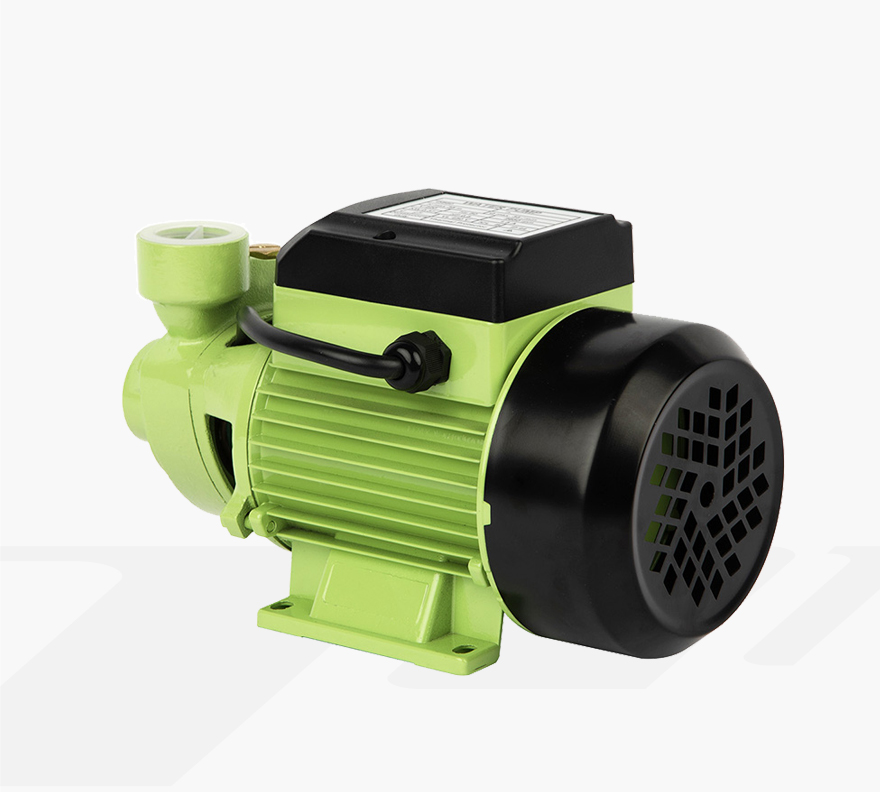

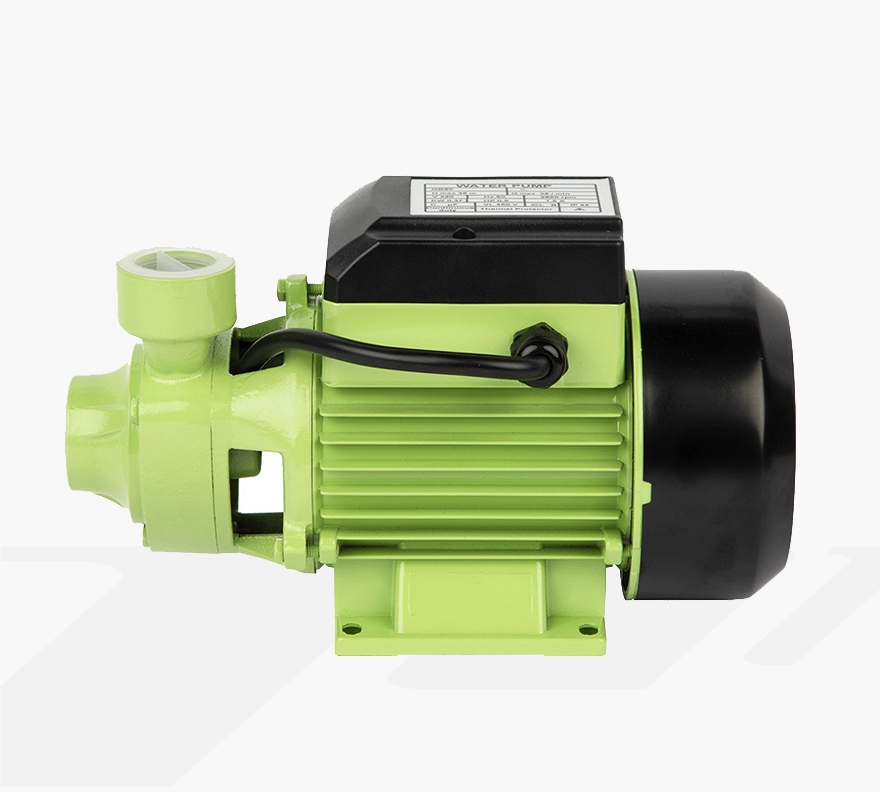

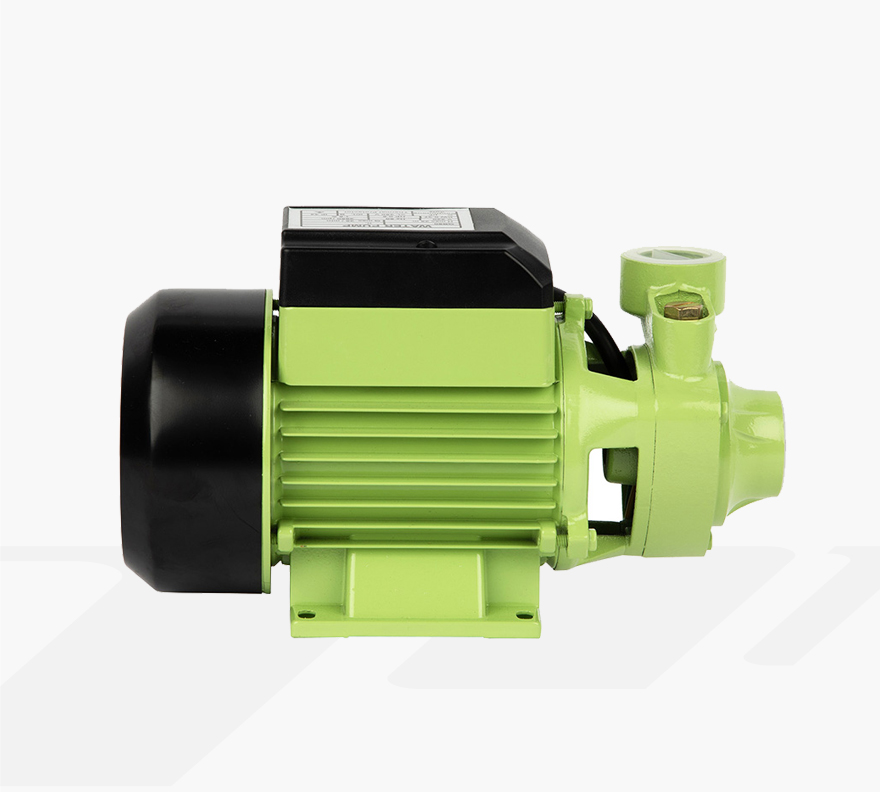

Product name: QB60
Electrical Data
Power: 0.37KW, 0.5HP
Q.Max: 35L/min
H.Max: 35L/min
S.Max: 8m
Inlet/Outlet: 1 inch
Motor Information
Two-pole induction motor
Single phase/three phase
50/60Hz (on demand)
Thermal protector for single phase
Insulation class: B
Protection class: IP44
Operating Limit
Max. medium temperature +40°C
Max. ambient temperature +40°C
Max. suction: 8m
Max. pressure: 6 bar
Others
G.W.: 5.5kg
Packing dimension: 430x285x345mm
20GP: 4050pcs
Material Description
Pumn body Cast iron with brass/ AISI304 SS insert if request
Pump support: Cast iron, with brass/ AISI304 SS insert if request
Motor housing: Aluminum
Impeller: Brass
Motor wire: copper
Mechanical caal– Graphite&Ceramic
Shaft: 45#steel/stainless steel
