Pressure Controller BTC Series
High rise secondary water supply
Household automatic water supply
Pressure tank water supply system

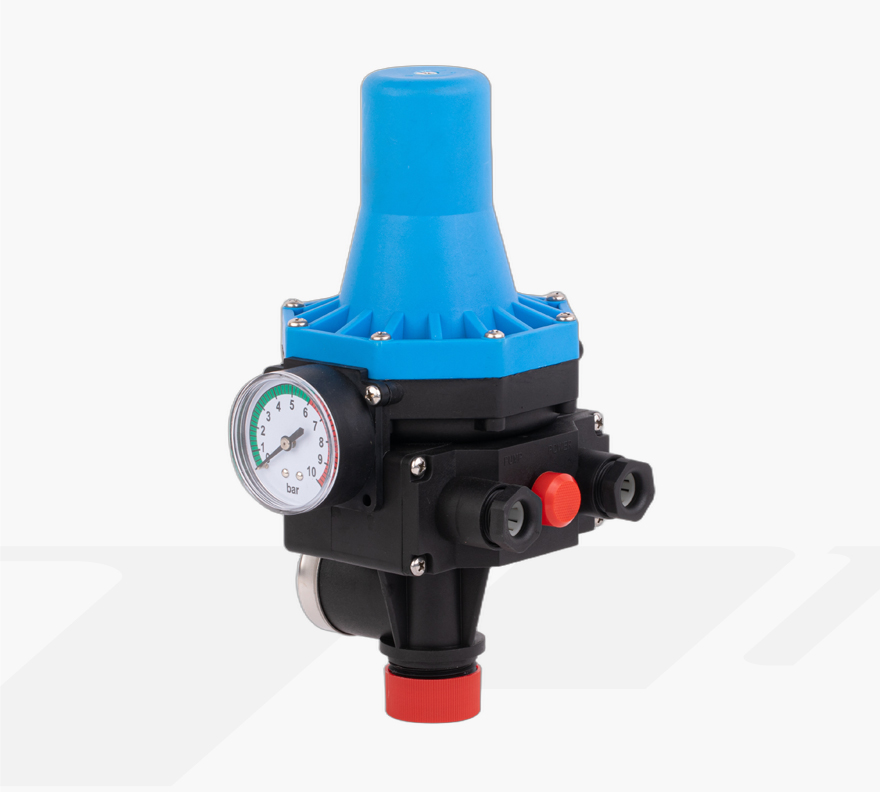

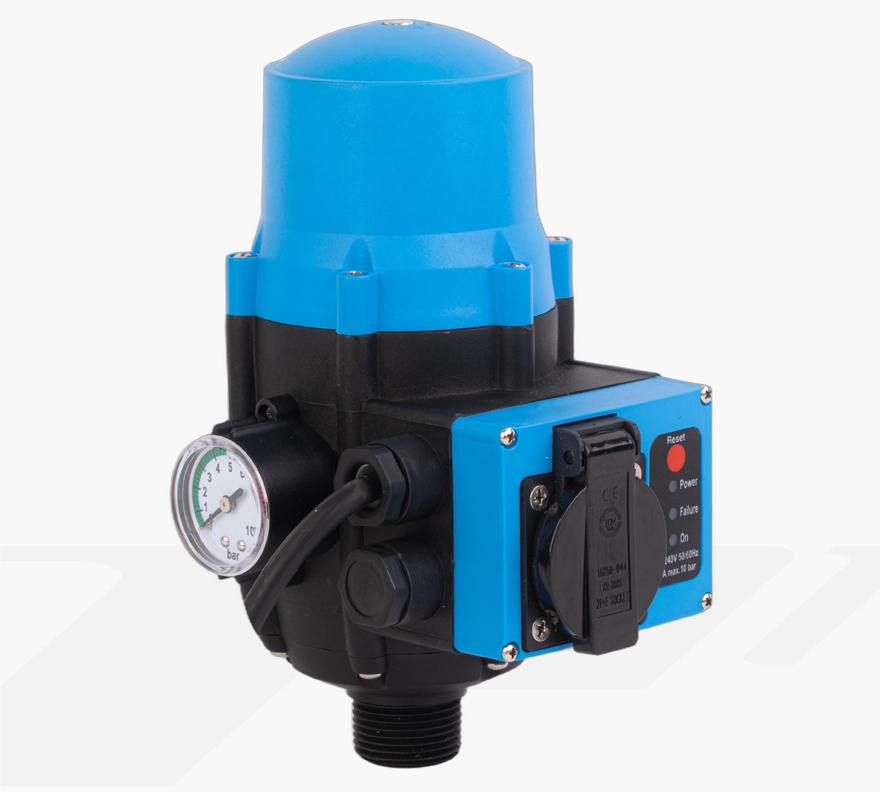

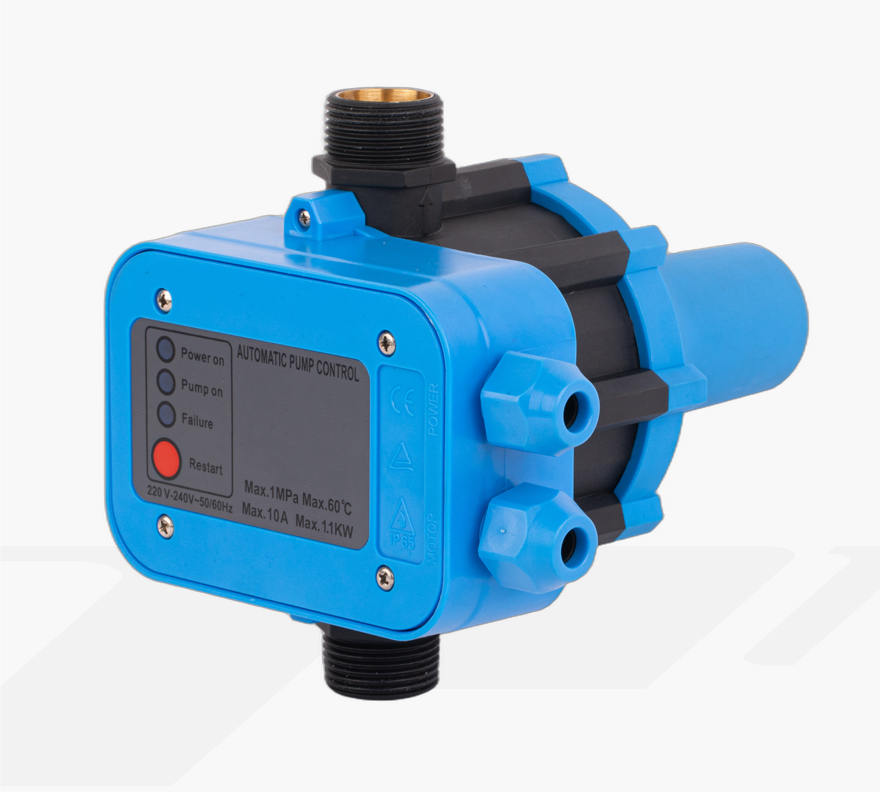

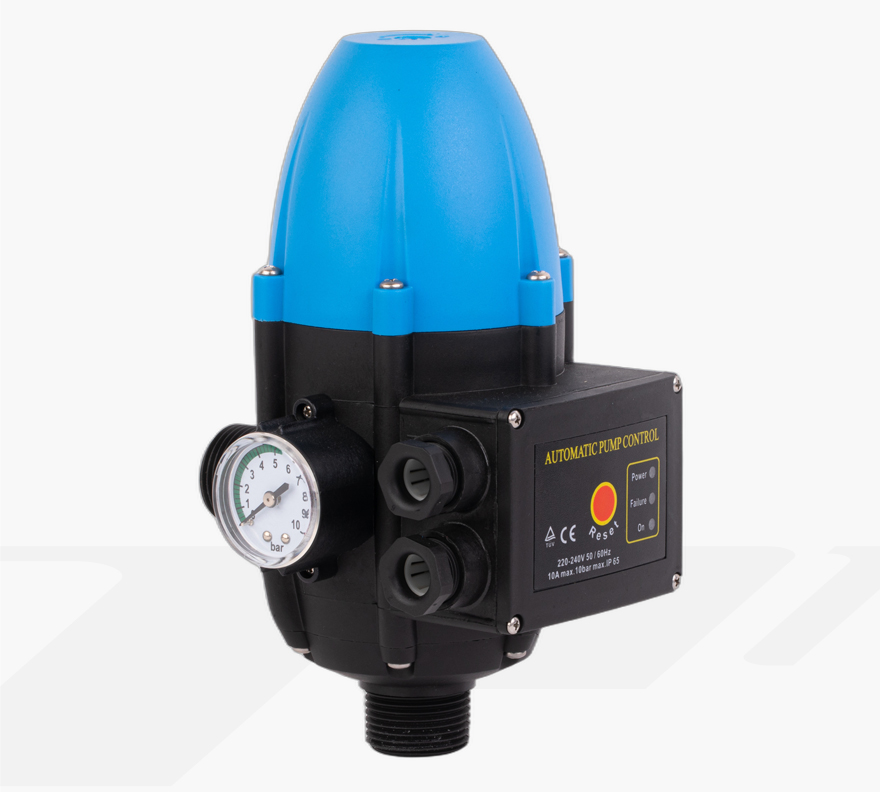

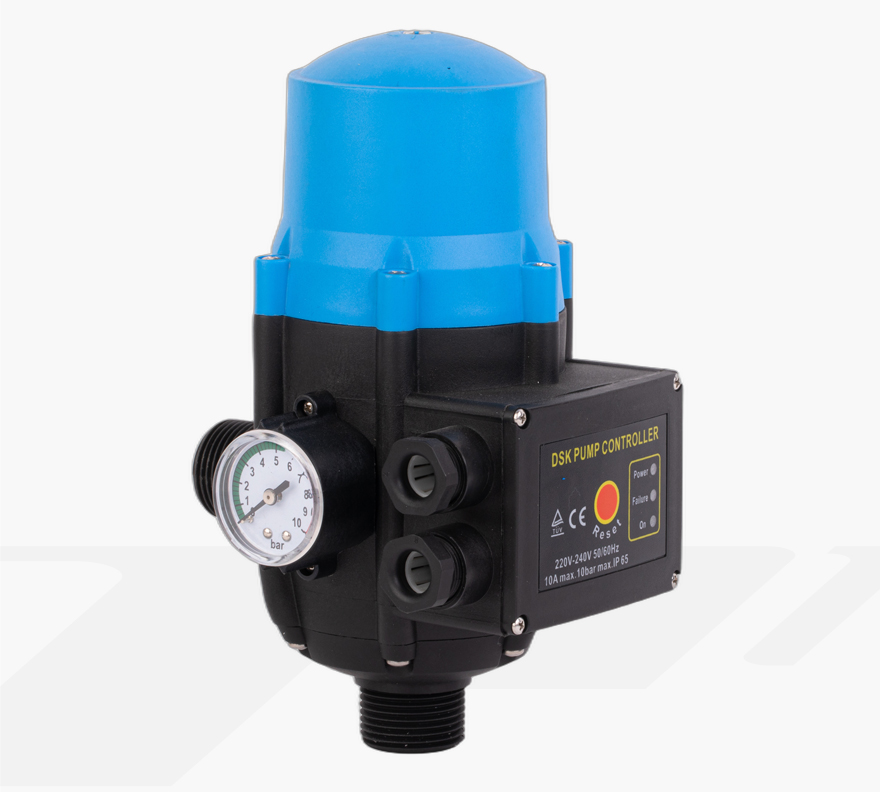

Product name: BTC180 Series
Product Feature
Motor power range:0.1-2.2kW
Input voltage range: AC 100-240V
Frequency: 50/60Hz
Max.current: 30A
Liquid temperature: 0-100°C
Max.pressure: 10bar
Ingress protection: IP65
Applicable height: 0-100m
Inlet&Outlet thread:1″external thread
Application
The adaptive intelligent controller is workable with different type of pumps. such as deep well submersible selfpriming pump.It can sutomaticolly identify the max pressure of the pump and set the starting pressure by certain percentage of pump’s max pressure. Don’t need to manually set the starting pressure in Auto mode.
Working Principle
The pump will be automatically started when pressure is lower than starting pressure or when flow switch is triggered to turn on
The pump will be automatically stopped when flow switch is The default water shortage protection period is 200s, which depends on pump’s self-priming time. It can be customized according to customer’s requirement before ex-works. When pump’s working condition changes or there is water leakage in pipeline, making starting pressure unsuitable, press “Auto/Reset” button to re-learn and re-set starting pressure automatically or press “UP+” or “DOWN-” button to re-set manually. triggered to turn off or in case of water shortage
