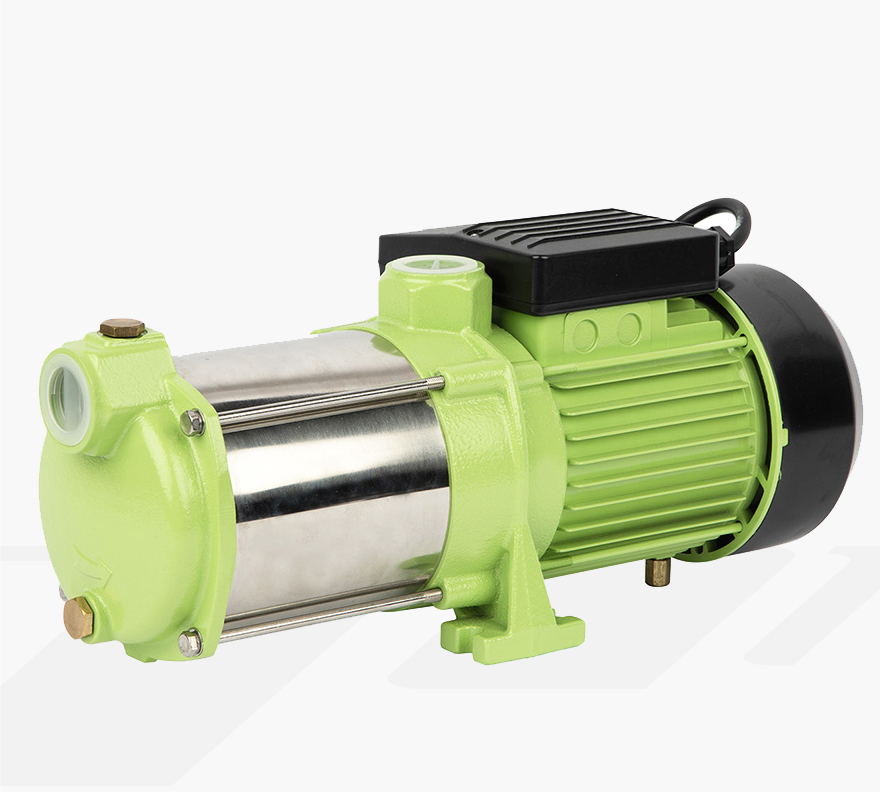

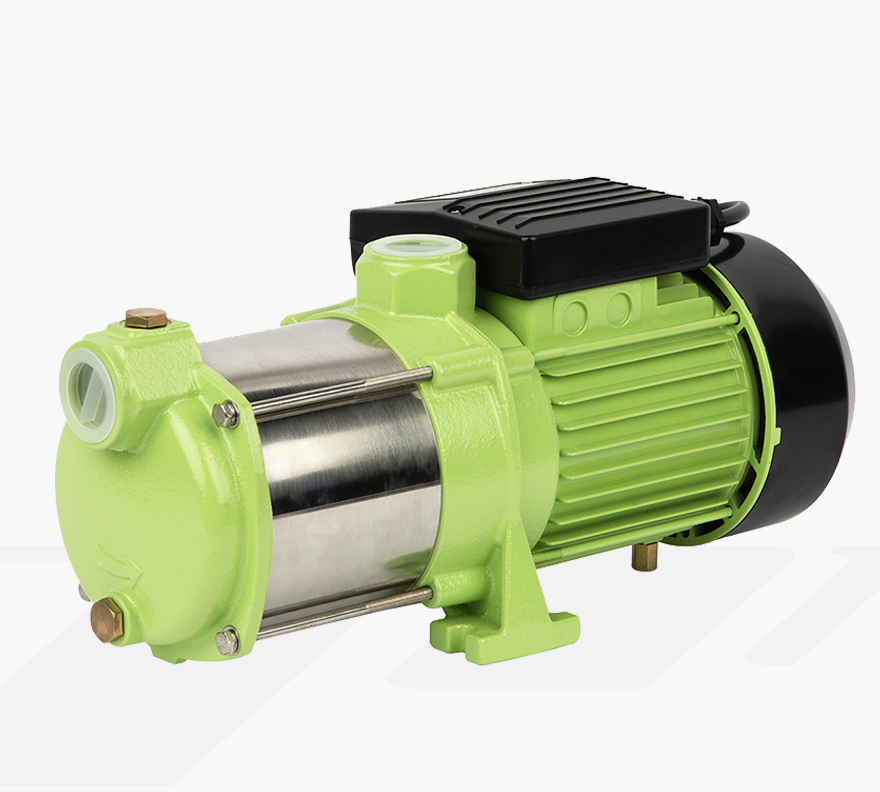

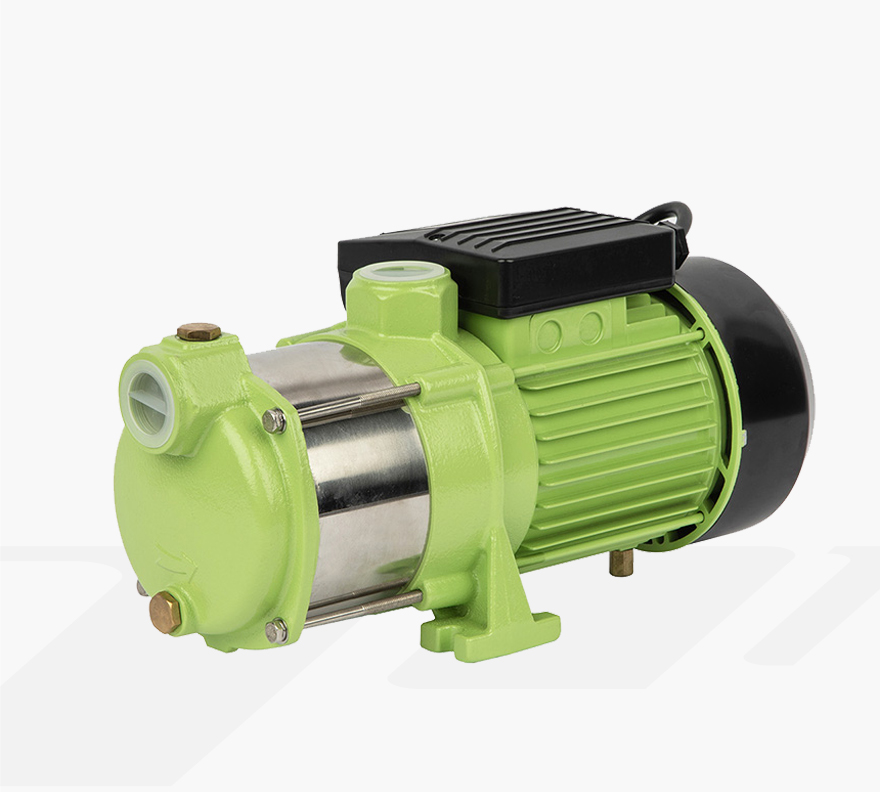

Multistage Pump
Multistage Pump DMC Series
DMC400
Product Model
Application Scenario:
Water Supply
Pressure Boosting
Circulation Cooling
Professional Certification:
Product name: DMC Series
Operating Limit
Max. suction: 8m
Max. medium temperature+40℃
Max. ambient temperature+40℃
Max.pressure：6 bar
Transport medium：PH6.5-8.5
Motor Information
Two-pole induction motor
Single phase/three phase
50/60Hz (on demand)
Thermal protector for single phase
Insulation class: B
Protection class: IP44
Material Description
Pump body: Cast iron
Pump support：Cast iron
Motor housing: Aluminum
Impeller: Stainless Steel/PPO
Motor wire: Copper
Mechanical seal: Ceramic & Graphite
Shaft: 45# steel/stainless steel
