Surface Pump

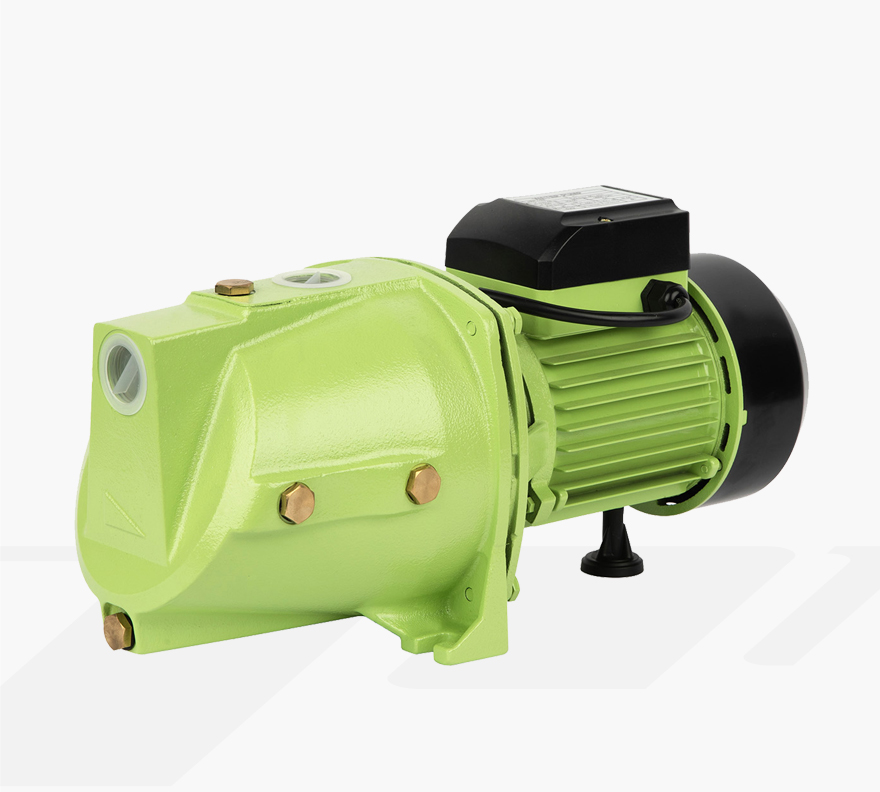

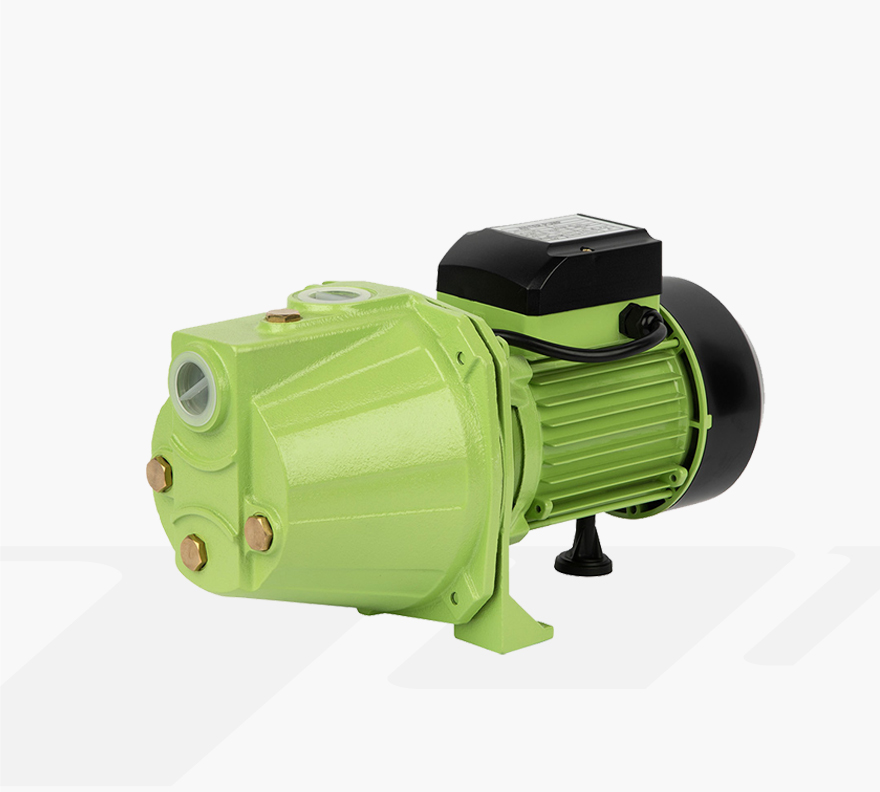

Jet Pump JSW Series
JSW
Product Model
Application Scenario:
Private House
Garden
Agriculture Irrigation
Professional Certification:
Product name: JSW Series
Operating Limit
Max. suction:9 m
Max. medium temperature+40℃
Max. ambient temperafure+40℃
Max. pressure：6 bar
Transport medium: PH6-8.5
Motor Information
Two-pole induction motor
Single phase/three phase
50/60Hz (on demand)
Thermal protector for single phase
Insulation class: B
Protection class: IP44
Material Description
Pumn body：Cast iron
Pumn support：Cast iron/Aluminum
Motor housing: Aluminum
Impeller: Brass
Mechanical seal: Graphite&Ceramic
Shaft: 45#steel/stainless steel
