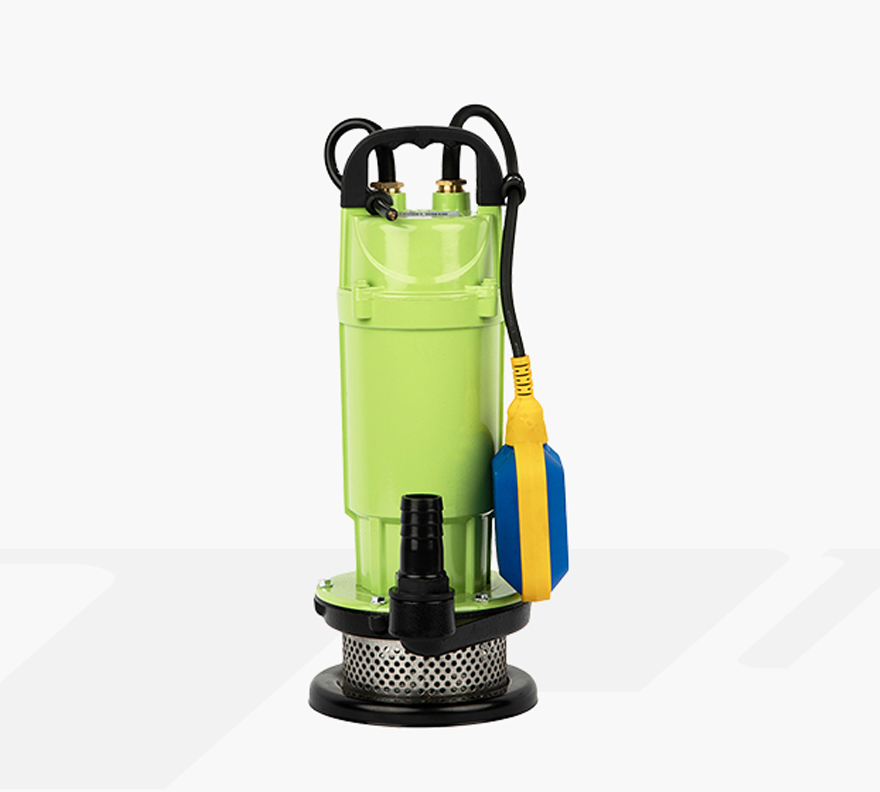

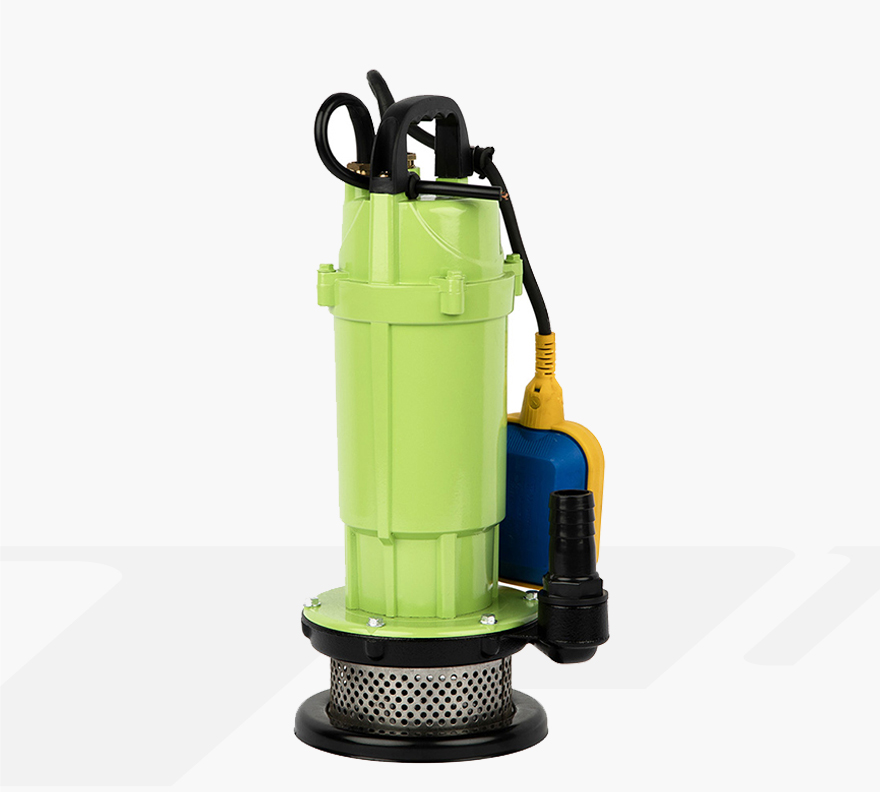

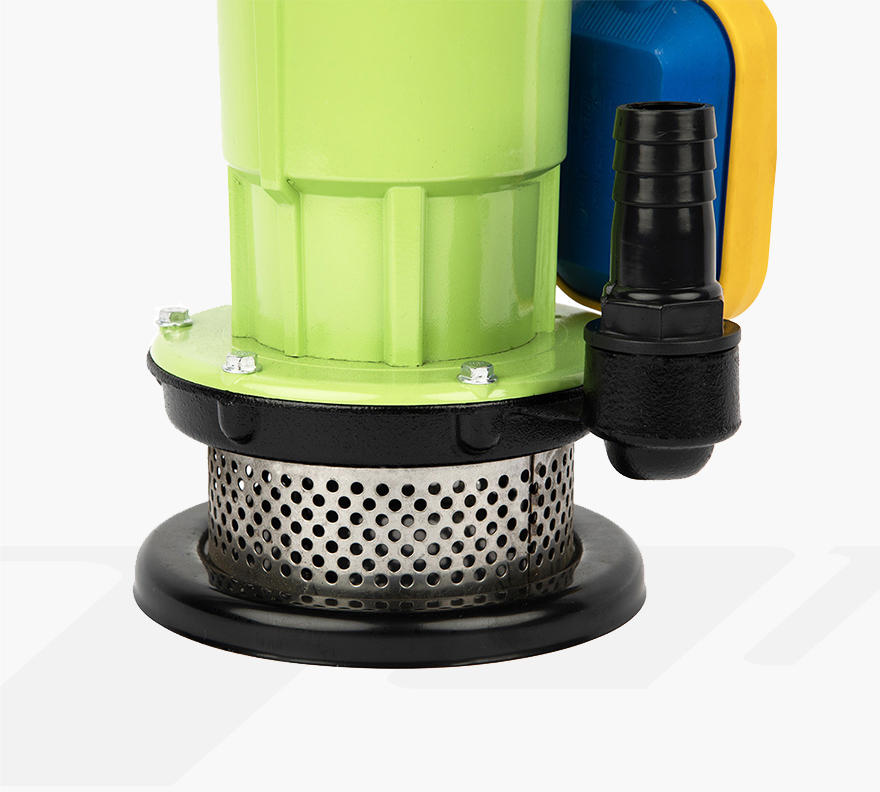

Submersible Pump QDX Series

Operating Limit

Max. medium temperature +40°C

Max. ambient temperature +40°C

PH level from 6.5-8.5

Immersion depth from 0.5m-5m

Maximum sand content is 0.1%

Maximum sand content is 0.1%, Passage of suspended solids up to 0.2mm.

Voltage fluctuation range: 0.9-1.1 times of the rated value

Motor Information

Two-pole induction motor

Single phase/three phase

50/60Hz (on demand)

Thermal protector for single phase

Insulation class: B

Protection class: IPX8
