Sewage Pump
Sewage Pump WQD Series

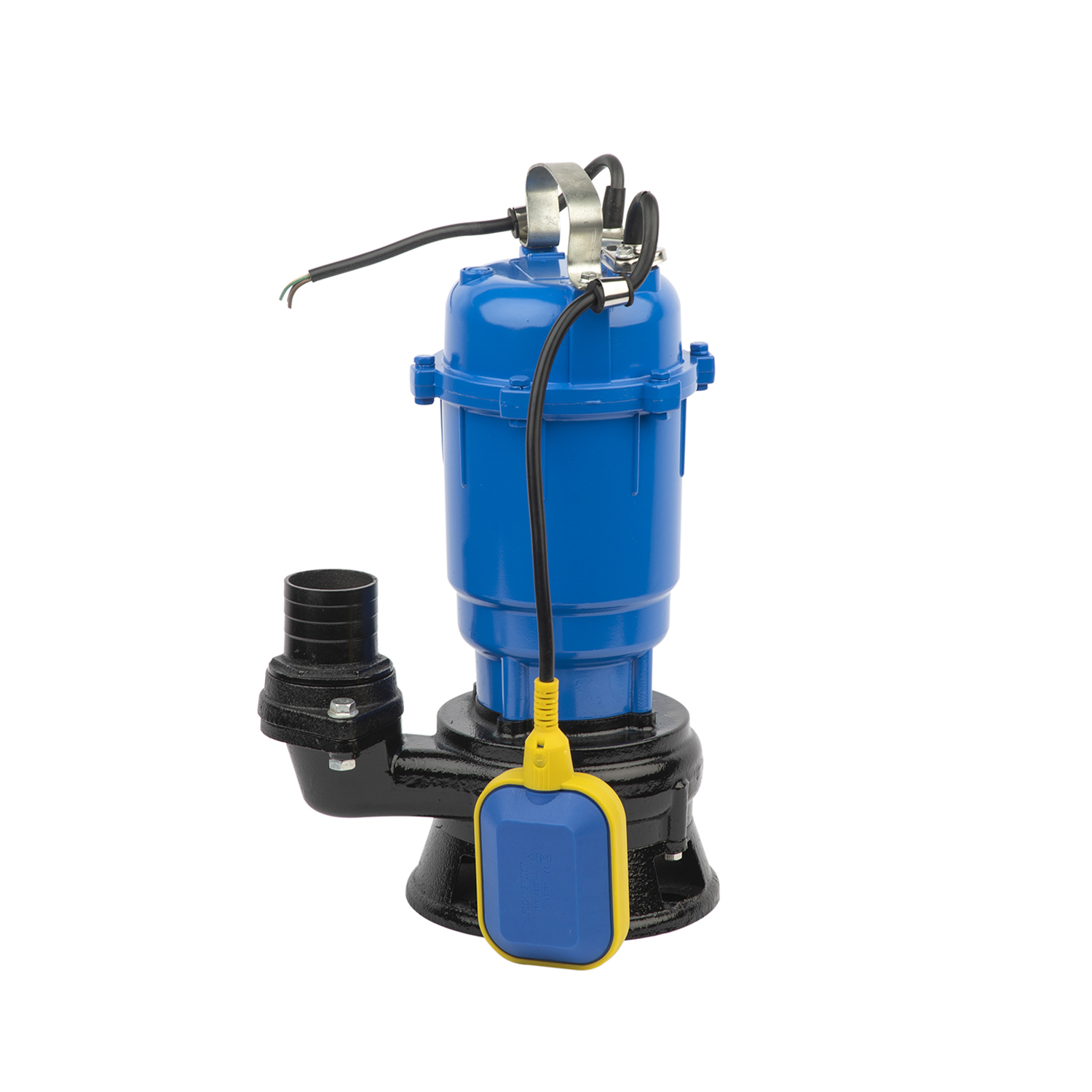

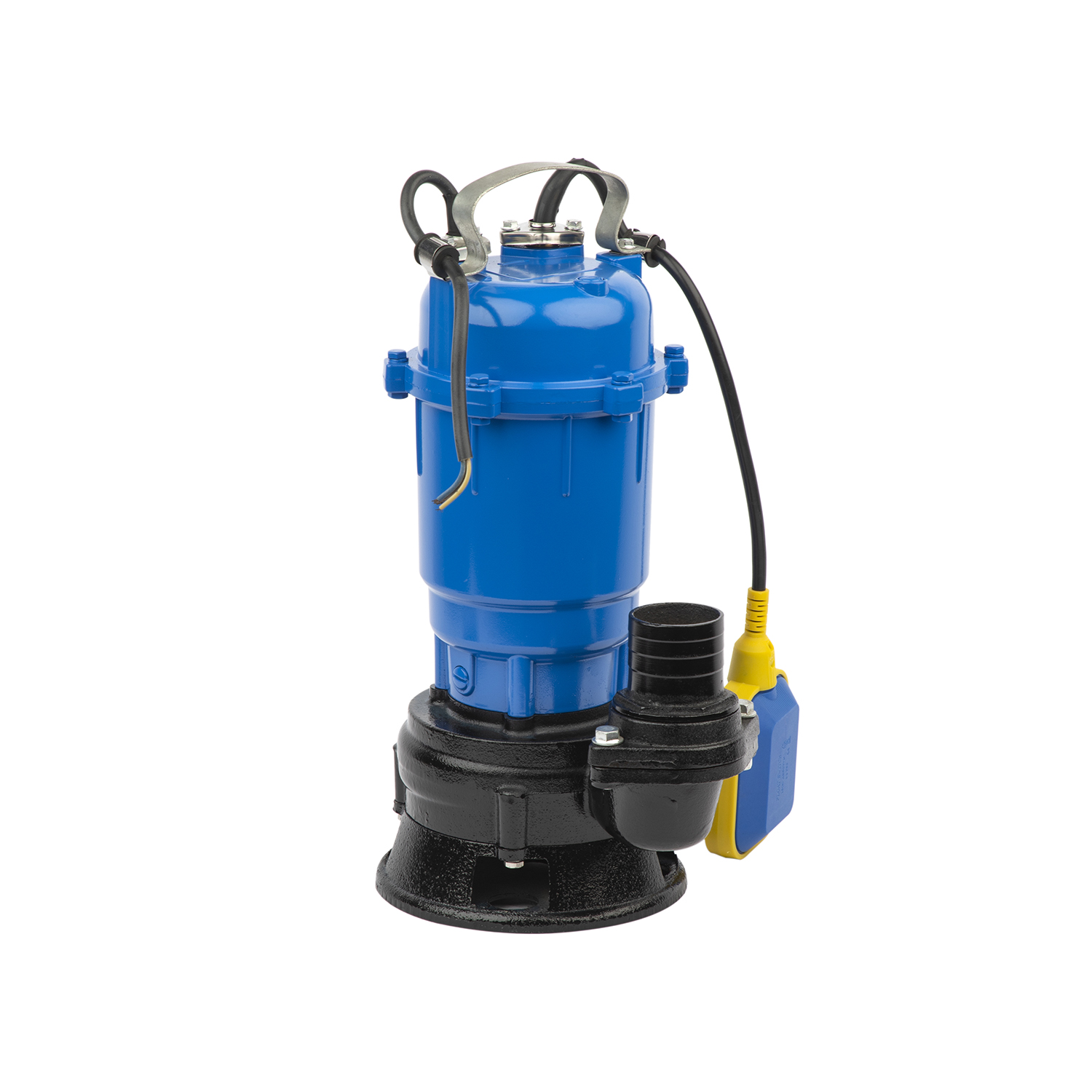

WQD10-7-0.55F WQD10-10-0.75F
Product Model
Application Scenario:
Septic Tank Pump
Construction Dewatering
Basement Sewage Pump
Professional Certification:
Product name: WQD Series
Operating Limit
Max. medium temperature +40°C
Max. ambient temperature +40°C
PH level from 4-10
Immersion depth from 0.5m-5m
Maximum passage for suspendedsolids Φ35
Voltage fluctuation range: 0.9-1.1 times of the rated value
Motor Information
Two-pole induction motor
Single phase/three phase
50/60Hz (on demand)
Thermal protector for single phase
Insulation class: B
Protection class: IPX8
Material Description
Pump body: Cast iron
Motor housing: Cast iron or Aluminum
Impeller: Cast iron
Motor wire: Copper
Mechanical seal: Ceramic & Graphite
Shaft: 45# steel/stainless steel
